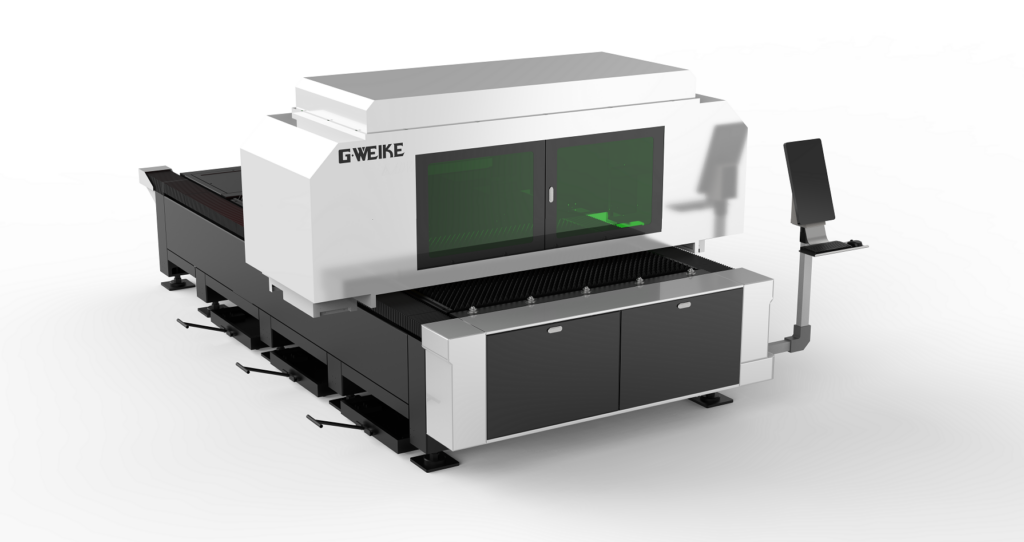

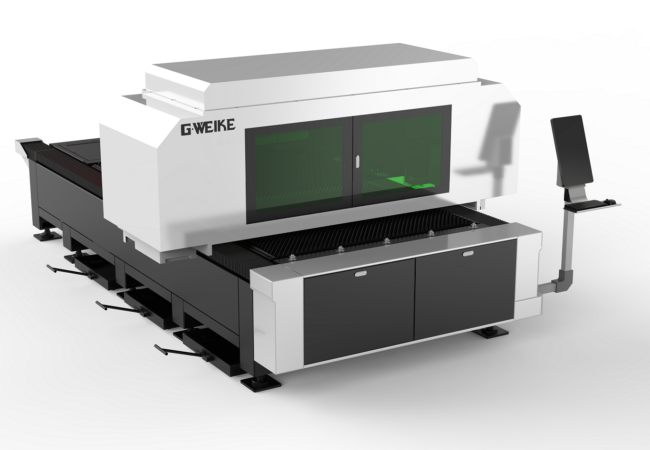

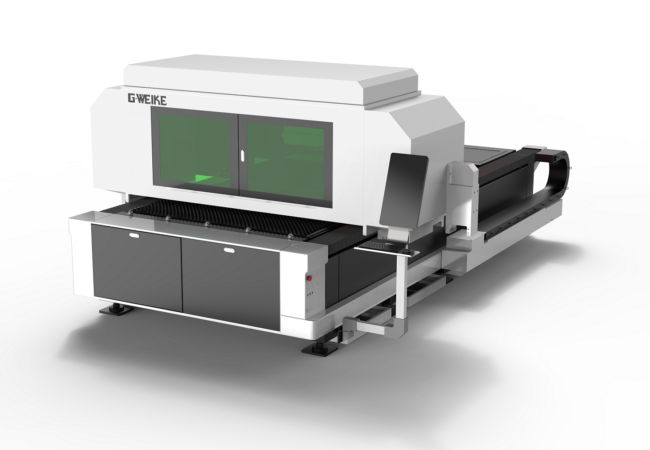

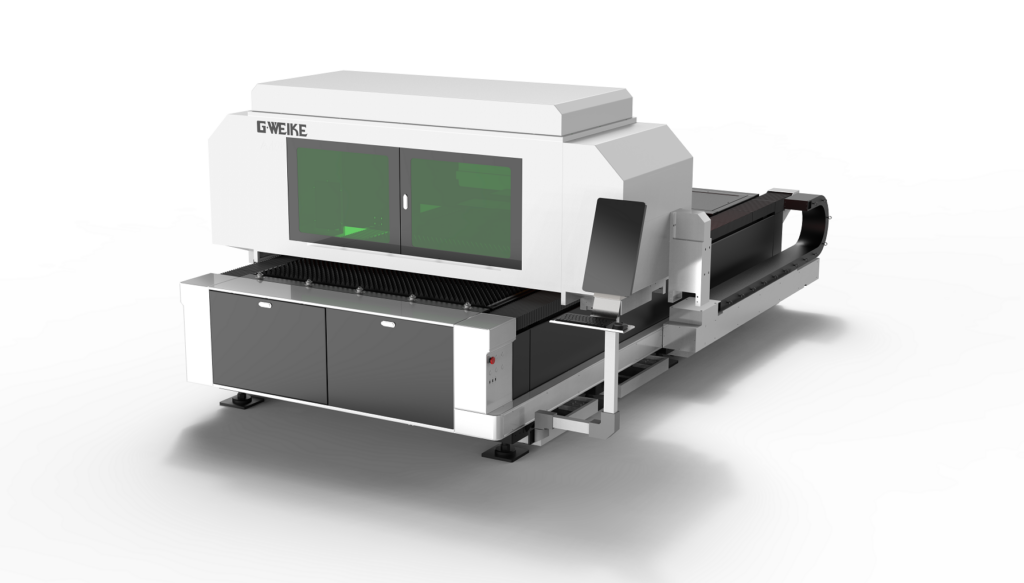

LF4020LN with cover
G Weike LF4020LN
- The LF4020LN Fiber Laser Cutting Machine is a high-performance, industrial-grade solution designed for precision metal sheet processing. It can be quipped with a fiber laser source upto 6kW MAX and advanced automation features, it delivers exceptional cutting speed, accuracy, and reliability. Built with an aviation-grade aluminum gantry and intelligent control systems, the LF4020LN ensures long-term stability, efficiency, and ease of operation—making it ideal for modern fabrication environments.
More Information
High-Power Fiber Laser Source up to 6kw
- Advanced single-mode technology
- High stability, and efficiency
- Capable of cutting high-reflective materials (with G5 connection)
Aviation Aluminum Gantry
- Lightweight yet extremely strong
- Improves cutting speed and machine responsiveness
- Corrosion-resistant and durable

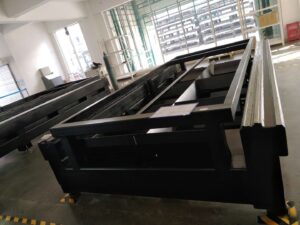

Heavy-Duty Machine Bed
- Honeycomb welded structure for maximum strength
- Heat-treated at 600°C for stability
- Designed to last longer without distortion
Precision Motion System
- High-accuracy YYC/APEX gear and rack
- HIWIN linear guide rails for smooth movement
- INOVANCE servo motors for high-speed positioning

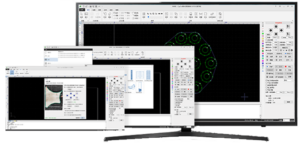

Intelligent Control System
- CYPCUT software with auto edge detection and nesting
- Supports multiple file formats (DXF, DWG, AI, etc.)
- No programming required—direct design-to-cut workflow
Smart Automation

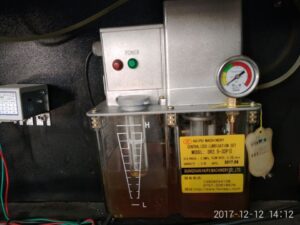

- Automatic rail lubrication system
- Automatic exhaust system for dust and smoke removal
- Water cooling system for stable operation
WIFI Remote Control
- Remote diagnostics and operation support
- Quick troubleshooting and setup assistance
| Model | LF4020LN |
| Max Working Area | 4000×2000mm |
| X-axis Stroke | 2000mm |
| Y-axis Stroke | 4000mm |
| Z-axis Stroke | 100mm |
| X/Y Positioning Accuracy | ±0.03mm |
| X/Y Reposition Accuracy | ±0.02mm |
| Max Moving Speed | 80m/min |
| Max. Acceleration | 1G |
| Transmission | Precision dual -gear rack drive |
| Max. Loading Capacity | 2200kg |
| Specified voltage and frequency | 380V/Three phase/50HZ/60HZ |
| Available Laser Source | 1500W-6000W |
| Overall Dimension (length × width × height) | 5800*3512*2250mm |
| Total Weight | 3600kg |
