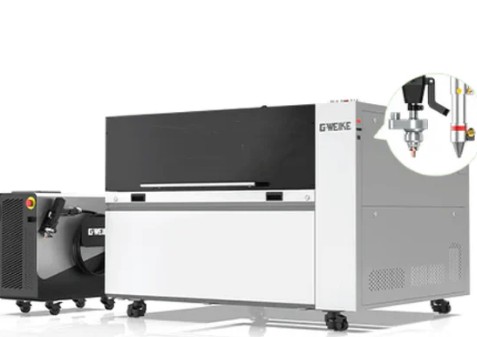

M3 Ultra 6-in-1 machine view
GWEIKE M3 Ultra 6-in-1

Compact fibre and CO₂ laser workstation

The GWEIKE M3 Ultra combines handheld fibre welding, cutting and cleaning with enclosed CNC sheet metal cutting. Its separate CO₂ laser cuts and engraves suitable non-metal materials such as acrylic and wood.

M3 Ultra 6-in-1 specifications

SpecificationM3 Ultra 6-in-1
Laser TypeFiber laser + CO2 Laser
Wattage1,200 W fibre + 130 W CO₂
FunctionsWelding / Cutting / Rust Removal & Cleaning / CNC Metal Cutting / CO2 Cutting / CO2 Engraving
Working Area1,380 × 920 mm
Max. Material Width (Front/Rear Feed)1380 mm
Maximum material thickness at feed opening60 mm
Max. Working Speed800 mm/s
Repeat Positioning Accuracy (X/Y)±0.02 mm
Maximum Acceleration1G
X-Axis Travel1,450 mm
Y-Axis Travel960 mm
Z-Axis Travel60 mm
Laser Safety ClassClass 4
Power Input200–240 V AC, 50/60 Hz
Operating Temperature-10 °C ~ 40 °C
Wavelength1,080 ± 10 nm
Auxiliary GasNitrogen / Argon / Oxygen
Cooling MethodAir Cooling + Water Cooling

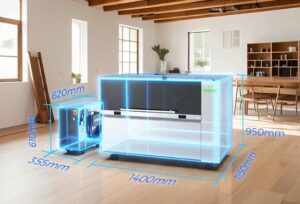

CNC platform dimensions2,185 × 1,780 × 1,100 mm
Machine Weight610 kg
Cable Length8 m
SoftwareGWEIKE M Series for Windows; material library

Where this machine suits

For prototyping and short runs that combine small CNC metal profiles, occasional handheld welding or cleaning, and engraving or cutting suitable non-metals.

If most of your work is CNC cutting full-size metal sheets, compare a dedicated sheet machine with the working area you need.

Features and equipment

Two sources for different jobs

The 1.2 kW fibre source handles CNC metal cutting and handheld work. The separate 130 W CO₂ source cuts or engraves suitable non-metals.

GWEIKE M Series six-process overview
GWEIKE M Series six-process overview

Material access and software

GWEIKE lists a 1,380 mm maximum material width for front or rear feed and provides Windows software for the M Series. Check the largest part against the 1,380 × 920 mm CNC working area.

M3 Ultra cutting and engraving samples
M3 Ultra cutting and engraving samples
  • Six processes in one workstation for prototyping, fabrication and small production runs.
  • A material library helps operators select settings for supported materials.
  • A single workstation saves floor space when you need both fibre and CO₂ processing.
Technical features

Handheld fibre processes

The 1,200 W fibre source powers handheld welding, cutting and surface cleaning.

CNC sheet cutting

Connect the fibre source to the enclosed CNC platform for sheet metal profiles.

CO₂ cutting and engraving

The separate 130 W CO₂ laser cuts or engraves suitable materials including wood and acrylic. Applications also include engraving suitable glass or ceramic surfaces.

Workshop applications

The two sources and material library suit prototyping, research and development, and workshops that switch between metal and non-metal work.

Compare similar sheet laser cutters
SpecificationLF1390M3 Ultra 6-in-1LF3015P II
Working area1,300 × 900 mm1,380 × 920 mm3,000 × 1,500 mm
Laser power500 W–3 kW1.2 kW fibre + 130 W CO₂1–3 kW
Table and loadingCompact enclosed bedEnclosed CNC platformPull-out bed

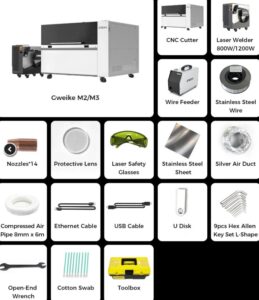

Configuration and options
  • GWEIKE offers an M Series rotary accessory. Confirm compatibility and inclusion for your application.
  • Confirm assist gas and extraction for the processes you intend to run.
  • If you need a specific file format or nesting workflow, bring a file to try in the M Series software.

Brochure and enquiries

Tell us which processes you need, what materials you run and the largest part you expect to make.
