THIRD GENERATION AVIATION ALUMINIUM GANTRY

• Manufactured with aerospace standards and formed by 4300 tons press extrusion molding.
• After aging treatment, its strength can reach 6061 T6 which is the highest strength among all gantries.
• Some of the benefits of Aviation aluminium are:

-High Strength -Light Weight -Corrosion Resistant

SEGMENTED RECTANGULAR TUBE WELDED BED

• The internal bed structure adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes.
• Stiffeners are arranged inside the tubes to increase the strength of the bed, it also increases the stability of the guide rails so as to effectively avoid the deformation of the bed.
• High strength, stability, tensile strength, ensuring 20 years of use without distortion.
• The thickness of the rectangular pipe wall is 10mm and weighs 4500 kgs.

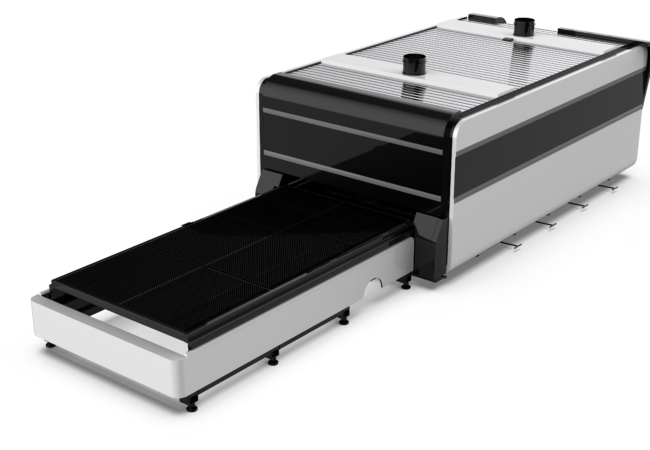

EXCHANGE PLATFORM

• The Exchange Platform acts as a loading & unloading platform which saves feed time and improves productivity.
• The platform exchange is completed within 15s.

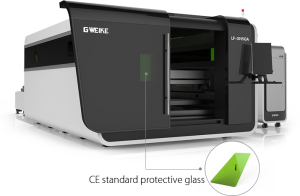

SAFETY AND NO SMOKE

• With a fully enclosed safety design.
• The watch window adopts a European CE Standard laser protective glass.
• The smoke produced by cutting can be filtrated inside. Hence, a non-polluting and environmentally friendly design is achieved.

TRANSMISSION AND PRECISION

• Fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor, and German Neugart reducer gear unit.
• The positioning accuracy of the machine tool is 0.02mm.
• The cutting acceleration is 1.5G.

INDEPENDENT CONTROL CABINET

• All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.

CNC OPERATING SYSTEM

• The CNC system integrates high productivity and simple operation.
• Supports most of the CNC files.
• In-built drawing and nesting tools for simple and quick jobs.
• Different cutting strategies can be applied to the nest.

LASER HEAD

BOCI BLT4 Series Laser Cutting Head

• Closed-loop Monitoring: built-in multiple sets of sensors, real-time closed-loop intelligent monitoring.
• Air Pressure Monitoring: real-time monitoring of gas flow rate during cutting.
• Anti-Collision Protection
• Four Sets of Protective Lens: ready-to-use optics drawer.

 Advantages:

Stable and Efficient Cutting: Brand new optical solutions come with closed-loop auto focusing. Supports slag-free cutting, nozzle cooling, and water cooling sensor.

Easy to Maintain: Ready-to-use optics drawer with lenses that can be changed in 5 minutes.

• LASER POWER SOURCE

IPG and Max laser power sources available with the optional power ratings of

3kW, 6kW, 8kW and 12kW (on request)

• COMPRESSOR
• DUST COLLECTOR
• NITROGEN GENERATOR
