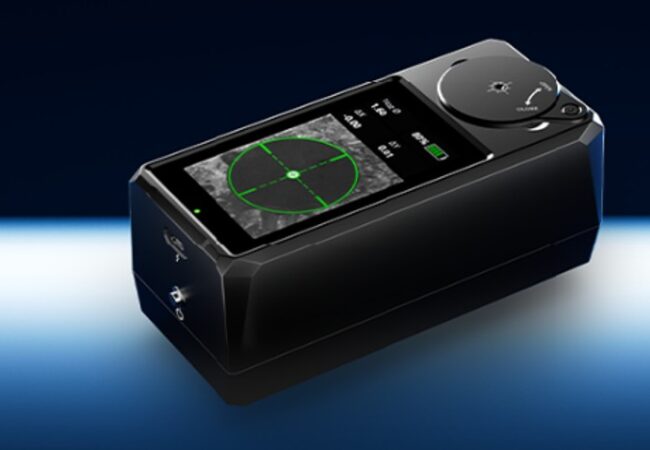

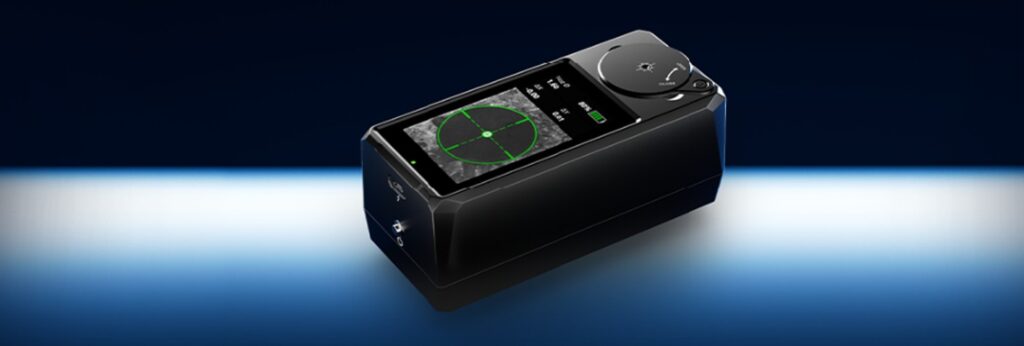

BOCHU MCD100 Manual Laser Centering Device
Precision Alignment for Superior Cutting
The BOCHU MCD100 is a compact, high-precision manual centering device designed to align the laser beam and nozzle with exceptional accuracy. It replaces traditional trial-and-error calibration with a fast, visual, and repeatable process—ensuring optimal cutting performance every time.
KEY FEATURES
🔹 Ultra-Precise Calibration
Repeatability ≤ 0.02 mm ensures consistent, high-quality cuts
🔹 Real-Time Imaging System
High-resolution display provides clear, accurate beam positioning
🔹 Quick 3-Step Operation
Align → Observe → Adjust
Minimize downtime and boost productivity
🔹 Standalone & Portable
No external PC required, lightweight (~1 kg), rechargeable battery
🔹 Industrial-Grade Durability
Built for demanding environments (IP64 protection)
More Information
KEY FEATURES
🔹 Ultra-Precise Calibration
Repeatability ≤ 0.02 mm ensures consistent, high-quality cuts
🔹 Real-Time Imaging System
High-resolution display provides clear, accurate beam positioning
🔹 Quick 3-Step Operation
Align → Observe → Adjust
Minimize downtime and boost productivity
🔹 Standalone & Portable
No external PC required, lightweight (~1 kg), rechargeable battery
🔹 Industrial-Grade Durability
Built for demanding environments (IP64 protection)
APPLICATIONS
✔ Laser cutting machine setup & commissioning
✔ Routine maintenance & calibration
✔ Nozzle replacement alignment
✔ Troubleshooting cutting defects
✔ Sheet metal, automotive, aerospace, precision fabrication
TECHNICAL SPECIFICATIONS
- Resolution: 1920 × 1200
- Accuracy: ≤ 0.05 mm
- Repeatability: ≤ 0.02 mm
- Screen: 4.5” display
- Battery: 4500 mAh
- Weight: ~1 kg
- Power Consumption: < 4W
- Protection Rating: IP64
Why Choose MCD100?
✔ Improve cutting accuracy & edge quality
✔ Extend nozzle lifespan
✔ Reduce setup time and operator error
✔ Increase overall production efficiency
